Linear encoder with cableless readhead

Cable-Free Readhead Absolute Encoder

Cable-free, ultra light readhead
Wide mechanical tolerances

Multiple Readheads
Harsh environment

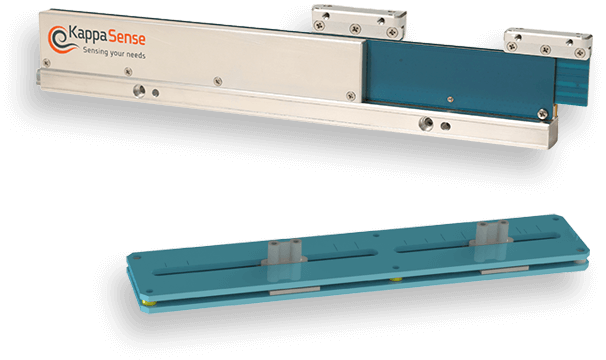

Linear Encoder with Cable-Free Readhead

Kappasense’s FREEe™ is a linear encoder technology platform in which the readhead is a passive device weighs only 3 grams. Due to it’s Passive, Cable-less characteristics, moving Cables are not requiered! All the encoder cabling is static and connected to the scale.

A primary factor of concern in linear motion systems is the robustness of the cables that are connected to the moving element. The FREEe™ solution enhances machine reliability by obviating the need for moving encoder cables.

In addition, KappaSense’s absolute capacitive linear encoders offer wide mechanical tolerances & Harsh Environment operation which makes it suitable for myriad applications.

Technical ENCODER SpecificationS

Encoder Parameter

Value

KEY FEATURES

APPLICATIONS

MECHANICAL DIMENSIONS

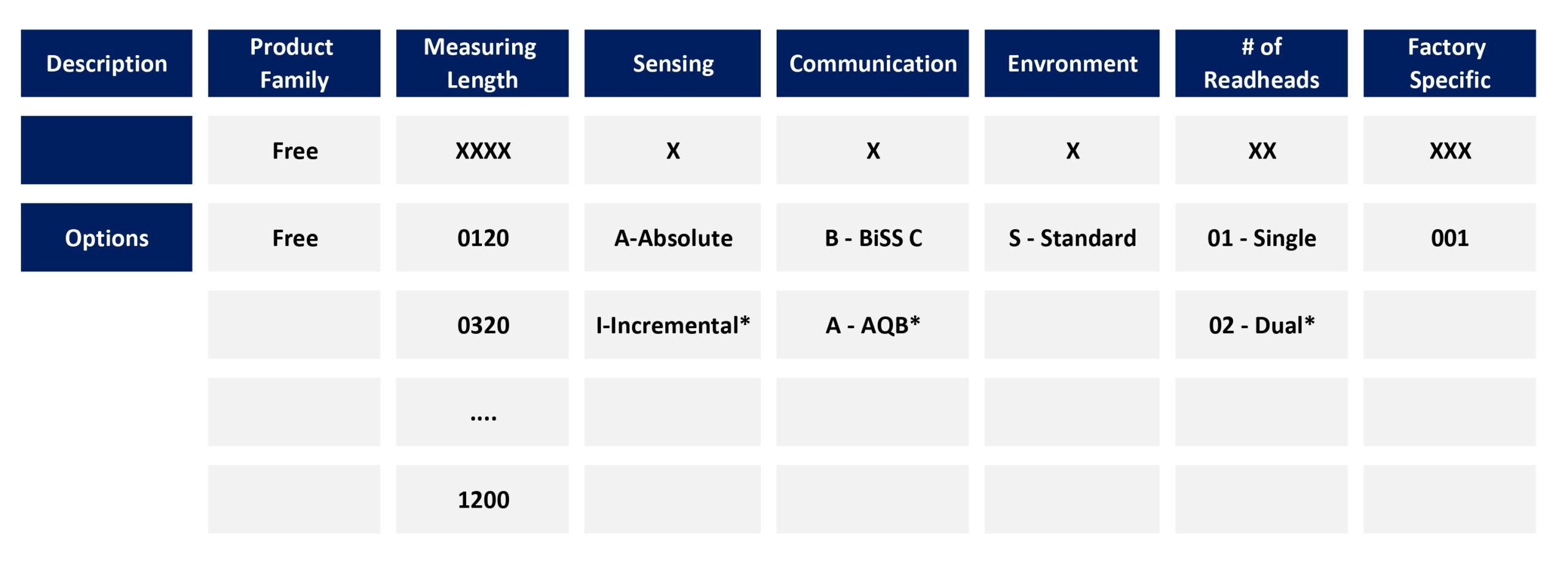

Ordering Information

Length Modification: Available 200-1200 mm
Ordering Example: FREE-0260-A-B-S-01-001
* Contact for more information

Multiple Readheads

Kappasense FREEe™ platform can offer the ability to implmement multiple number of Read-heads on a single Linear Scale, Thus, giving the ability to control more than 1 load on the same axis with a single encoder.

The benefit is substantial:
